Rohn Tower designs are in accordance with ANSI/TIA-222-F-1996 and ANSI/TIA-222-G-2005, Class I Structures. I have used various models of Rohn towers at the K0UO Rhombic Antenna Farm and outdoor antenna test range over the years, so I put this page together.

an actual photo View of a truck load of Rohn radio tower sections for use at General Brig General Steven Walz's, known as K0UO 1200 acre antenna farm, The number Amateur radio “Super Station” in the world which is the worlds largest antenna site and test range with super ham station, k0uo ham radio station k0uo,
miles of antennas for ham radio
dozens of tall antenna support structures, like FCC registered towers up to 195 foot, numerous 100 foot wood power-line poles, concrete silos, and portable mobile tower view from the top of the FCC TOWER NUMBER AR #1216715 on the k0uo antenna test and rhombic farm is a big gun and contester dream station the biggest ham station with the highest gain biggest antennas in the world. The K0UO Rhombic farm and antenna test range is one of the very few big gun ham radio stations that has a tower which is tall enough and required by the FCC to have a registration. The Antenna Structure Registration or ASR tower number is 1216715. So the K0UO site, station, and antenna is in the FCC public file, for actual verification, unlike other so called big gun ham radio stations .
1200 acres to test and build all types of antennas and tower pole supports, also the largest ham radio station in the world with milrd of wire arrays and many towers, Antenna Test Facility ATF, electromagnetically-quiet area. View of General Steven Walz 1200 acre world largest antenna site and test range, k0uo ham radio station k0uo,
miles of antennas for ham radio
dozens of tall antenna support structures, like FCC registered towers up to 195 foot, numerous 100 foot wood powerline poles, concrete silos, and portable mobile towers.
The K0UO Rhombic farm and antenna test range is one of the very few ham radio stations that has a tower which is tall enough and required by the FCC to have a registration. The Antenna Structure Registration or ASR tower number is 1216715. So the K0UO site, station, and antenna is in the FCC public file. used in conjunction with RSI Corp of Kiowa KS seehttps://www.rsicorp.com/dtic. Use for DOD and commercial wireless telcom groups groups. K0UO uses Re-entrant system that achieves 90% efficiency, by re-phasing the power back into the antenna, rather than dissipating it as heat in termination resistors.Welcome to K0UO's premier ham radio antenna site farm, spanning hundreds of acres dedicated to innovative design and rigorous testing of antennas. The largest in the world, so join me in advancing the field of ham antennas radio with cutting-edge technology and expert guidance. This station has been very competitive, and has won many major worldwide amateur radio contest.
High-Frequency Stock Trading groups should use the rhombic antenna.

The Defense Technical Information Center is RSI's central facility for the collection and dissemination of scientific and technical training information. RSI supplies training and assessment services to the United States and other governments.Welcome to the K0UO Ham Radio Station, home the world's largest antenna site and test range, spanning impressive 1,200 acres. Featuring miles of antennas and towering structures—including FCC-registered reaching up to 195 feet—our facility is a dream destination for serious contester and big gun operators. With numerous -foot wooden powerline poles, concrete silos, and portable mobile towers, the K0UO Rhombic Farm stands out for its significant height and capabilities. Registered under Antenna Structure Registration number 1216715, our station is recognized in the FCC public file, credibility and verification that sets us apart from other so-called big gun ham stations. The station and antenna farm uses very complex highly engineered arrays.

k0uo uses Re-entrant Rhombic array is one of the highest forward gain HF antennas with its 90% efficiency, the highest forward gain of any HF ham antenna. Also a world-class multiple stations, with many large LPDA yagi type beam antennas, 195 to 300 foot towers, and multiple very large wood power-poles. Antennas from 160 meters up to 2 meters. Using the new Icom IC7760 as the main transceivers.

With 1200 acres near by to test and build all types of antennas and tower pole supports, also the largest ham radio station in the world with milrd of wire arrays and many towers, Antenna Test Facility ATF, electromagnetically-quiet area.
Miles of antennas for ham radio
dozens of tall antenna support structures, like FCC registered towers up to 195, to 300 foot on a near by Gypsum hills site, numerous 100 foot wood power-line poles, concrete silos, and portable mobile towers.
The K0UO Rhombic farm and antenna test range is one of the very few ham radio stations that has a tower which is tall enough and required by the FCC to have a registration. The Antenna Structure Registration or ASR tower number is 1216715. So the K0UO site, station, and antenna is in the FCC public file. used in conjunction with RSI Corp of Kiowa KS seehttps://www.rsicorp.com/dtic. Use for DOD and commercial wireless telecommunications groups.

RSI Corp can Handle technical management, RF testing logistics, and integration of measurement instrumentation in collaboration with the facility. The K0UO site is a highly technical facility used to precisely measure an antenna's performance characteristics, such as its radiation pattern and gain.

K0UO antenna test range site has significant out door real estate, so anechoic test chambers are not needed.

https://www.rsicorp.com/dtic

What exactly does RSI do? Steve Walz says, “RSI is the leader in the field of radiofrequency emissions safety.” The King of wire antennas is a K0UO rhombic as shown in the photo

K0UO Rhombic antenna farm which is the highest forward gain array and largest area on 1200 acres in use by any amateur ham station DX, remote, or contest station in current use any where in the world View of the K0UO RSI Corp. - Radiofrequency Safety International in a training class at the 1200 acres antenna test range site at the worlds largest ham radio station with the largest highest gain DX, contest antennas, K0UO has 100 to 195 foot rohn rotating towers with stack high gain arrays, rohn tower are great forBig Gun stations, DXers and Contesters, our clients include Verizon, AT&T, T-Mobile, the Department of Defense, Google, Black & Veatch, UPS, and FedEx. — **My son Jon Walz, KD0DCO, and I have purchased Rohn towers by the semi-truck loads, over the years**

ROHN began manufacturing towers in 1948, and the G-Series line of towers in the early 1950’s. Starting with the ROHN No. 5 tower, there was an ever present drive for a superior tower design. The No. 5 soon led to the ROHN No. 6 and continued through the No.10,11, 20, 25, 45, 55, 65, along with the R35 old Motorola & GE Contract towers, the Rigid Tube bolt together export Tower Series the 26KD, J, and the C Tower. ROHN originally coated the lightweight towers with a hot-dipped enamel coating called RohnKote. The alternative to RohnKote was hot-dipped galvanizing. The galvanized option was identified by the now famous “G” suffix added to the tower model. The G-Series was born! The numbers have settled to the four models R25, 45, 55, and 65 listed below and hot-dip galvanizing is the coating of choice for towers today. ROHN’s G-Series towers are designed for strength and versatility. The towers are constructed with high strength steel tubing or solid round legs. ROHN’s exclusive Zig-Zag solid-rod bracing provides exceptional strength. As they were in the 1950’s, each ROHN G-Series tower continues to be hot-dip galvanized for corrosion protection.

an actual photo view of a business sign of RSI Corp. - Radiofrequency Safety International and some of their groups in Kiowa, KS area, the y do AH&S EPA OSHA work for AI Centers and major groups since 1990s, Jon Walz, KD0DCO of ConcreteWalz and with RSI Corp set a large number of SCADA towers for the oil & gas industry, the skid loader has a cement mixer and hole drilling auger attachment. Every thing needed to set up the Rohn towers, our clients include Verizon, AT&T, T-Mobile, the Department of Defense, Google, Black & Veatch, UPS, and FedEx. — **We had several communication groups, under** **RSI Corp.** **Radiofrequency Safety International** **in Kiowa, KS**

an actual photo view of a business truck , trailer, skid loader other equipment of RSI Corp. - Radiofrequency Safety International and some of their groups in Kiowa, KS area, Jon Walz, KD0DCO of ConcreteWalz and with RSI Corp set a large number of SCADA towers for the oil & gas industry, the skid loader has a cement mixer and hole drilling auger attachment. Every thing needed to set up the Rohn towers — Jon Walz, KD0DCO of ConcreteWalz and RSI Corp groups set a large number of SCADA towers for the oil & gas industry, the skid loader has a cement mixer, and 24" to 42" hole drilling auger attachment. Every thing needed to set up the Rohn towers

view of the equipment used by RSI Corp. - Radiofrequency Safety International owned by Steven Walz installed over 800 rohn R25 and 45G in 2009 to 2012 ,Steve Walz who also has the Rhombic antenna 1200 acres antenna test range site at the worlds largest ham radio station with the largest highest gain DX, contest antennas — **Rohn 25** **sections used at the** **K0UO Rhombic antenna farm and the RSI Corp antenna testing range site**

View of the K0UO RSI Corp. - Radiofrequency Safety International antenna 1200 acres antenna test range site at the worlds largest ham radio station with the largest highest gain DX, contest antennas K0UO Rhombic antenna farm which is the highest forward gain array and largest area on 1200 acres in use by any amateur ham station DX, remote, or contest station in current use any where in the world — **A R-55 tower and RF control system box used at the K0UO Rhombic Farm and RSI Corp outdoor antenna testing range site**

ROHN TOWER R20G to R65G

Rohn 20, 25, 45, and 65 towers use tubular vertical elements.

Rohn 20 -R55 have bolt swaged steel joints on each leg for coupling.

The ROHN 20G Tower Section is 18 gauge steel Tubing 11.25 in spacing, 1 1/4 legs. The ROHN 20G 10 Foot main Tower Section consists of 6 bays spaced approximately 18.25 inches, 10 foot section wight is 30lbs, ROHN 25G accessories fit the 20G and 20G7 tower.

Rohn 25G has 11.25 in spacing.The ROHN 25G Tower Section is 16 gauge steel Tubing, up to 190 foot, 1 1/4 OD legs, 5/16 solid bracing. The ROHN 25G 10 Foot main Tower Section consists of 7 bays spaced approximately 15.75 inches, in 7'UPS ship-able or 10 foot standard wight of 37 lbs per-section.

https://www.3starinc.com/manuals/25G_buyers_guide.pdf

Rohn 35G or HW was a Motorola "Type HW" and also called The GE "Contract Tower" Is an odd-ball faced sized tower, made only for Motorola and GE. DO NOT treat it as R45, it is not that strong. The leg diameter and gauge is same as 25G and the zig zag bracing is the same size as 25G, but having an 15 inch face.

Rohn 45G has 16.75 in. leg spacing. ROHN 45GSR10 is the 10' Foot 45GSR Main Tower Section made with a 1-1/4" OD Solid Steel Rail design 7/16 solid rod bracing for Heavy Duty applications. A guyed 45GSR Tower can withstand 130 MPH Wind Loads up to 340 feet in Height. 68bb2b09e8e23_Guyed_Towers_45G_48-71.pdf

Rohn 55G is a multi-use structure that provides excellent strength for applications up to 400 feet, 17" CC on face, 1-1/2" OD, 11 ga steel legs, 7/16 solid bracing offered with either heavy steel tube or solid steel rod legs to satisfy a wide variety of needs under varied conditions. When properly installed, the standard tower will support the loads shown on various guyed and self-supporting information sheets in the ROHN catalog .Guyed Towers 55G.pdf

ROHN 5545G 20' foot 55G to 45G Transition Adapter Tower Section provides a means to join the 45G 16-3/4" Equilateral Face, 14 Gauge, 1-1/4" inch Rail Main Tower Section onto and on top of a 55G 17" Equilateral Face, 11 Gauge, 1-1/2" inch Rail Main Tower Section.

Rohn 65G is designed to provide excellent rigidity and strength in applications up to 500’.

Built on a 24 1/4” C to C equilateral triangle design, 1.90" OD leg with.145" wall, 5/8” O.D. Solid Bracing, Optional double braced sections are available, applications 340' to 500 feet. In 10 or 20 foot sections with 4 bolt flange per-leg

68a8c699c3d57_Guyed_Towers_65G_124-148.pdf

https://www.talleycom.com/images/pdf/ROH25GSSB.pdf

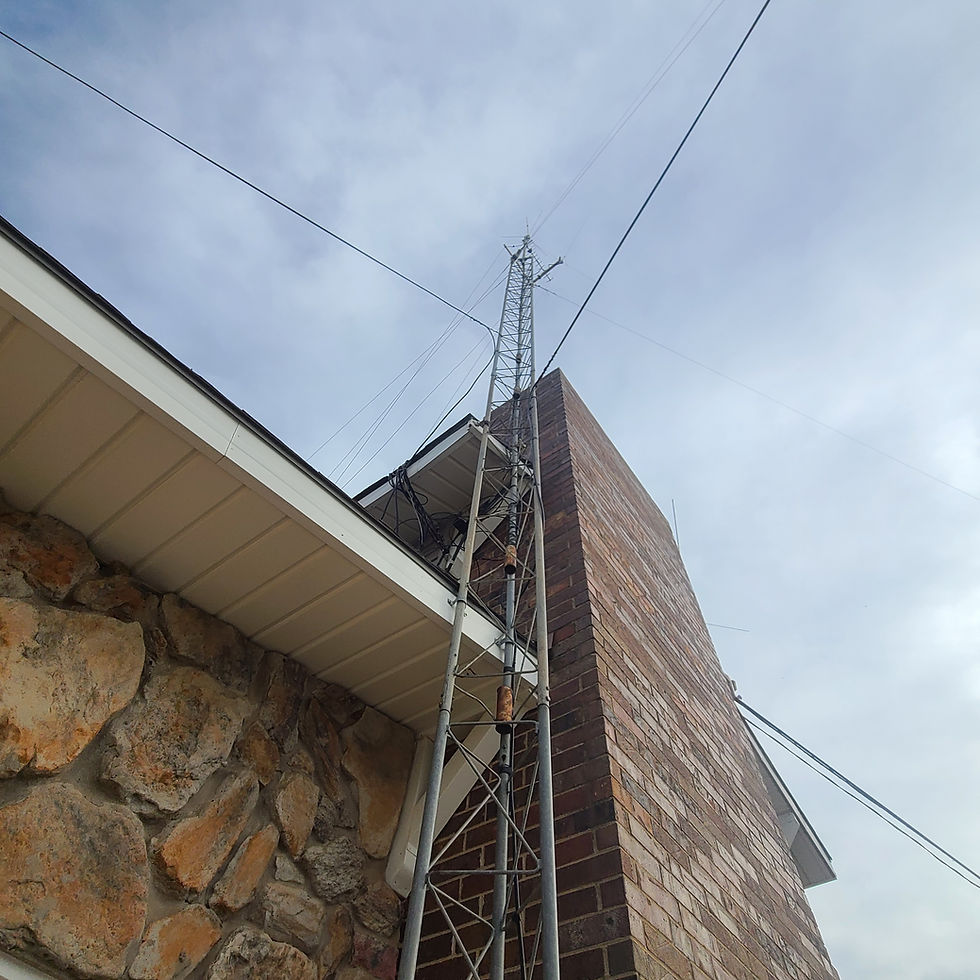

A view of one tower at Steven Walz's, K0UO' station a combination of rohn R25G at the base and the top sections at R20G — **My shortest tower! A combination Rohn 20/25, using a R25G at the base, and R20G sections on top**

an actual photo view of the shop and loading yard of View of the K0UO RSI Corp. - Radiofrequency Safety International antenna 1200 acres antenna test range site at the worlds largest ham radio station with the largest highest gain DX, contest antennas view of a business sign of RSI Corp. - Radiofrequency Safety International and some of their groups in Kiowa, KS area, Jon Walz, KD0DCO of ConcreteWalz and with RSI Corp set a large number of SCADA towers for the oil & gas industry, the skid loader has a cement mixer and hole drilling auger attachment. Every thing needed to set up the Rohn towers — **Our team in Kiowa, KS, getting ready for a tower install project**

a view of one of K0UO's large DYI motors to turn large HF arrays pon Rohn towers, — **A very large prop-pitch motor used to rotate 195 foot Rohn towers at K0UO site, it is for sale**

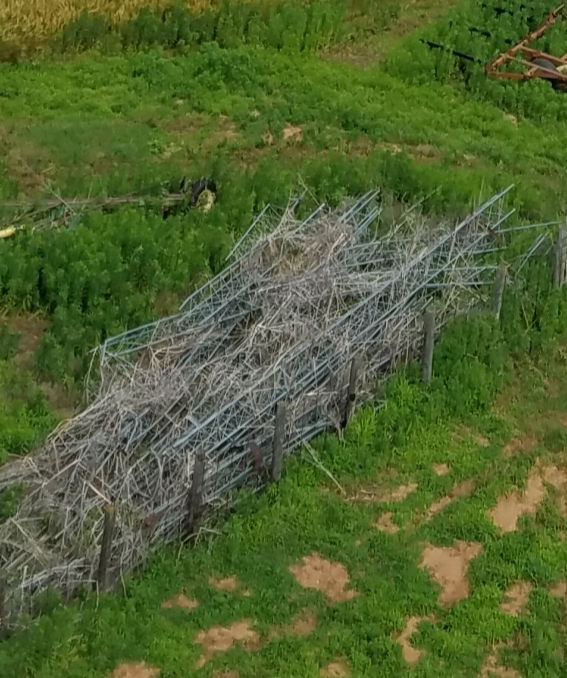

a view of 1000's of feet of Rohn and steel radio towers at K0UO station. K0UO Rhombic antenna farm which is the highest forward gain array and largest area on 1200 acres in use by any amateur ham station DX, remote, or contest station in current use any where in the world enought to put up ten more 200 foot towers — I have cut down a number of communication towers (dozens). Everyone wants a tower, but when they find out how much work and cost it takes to do the permitting, dig the hole, pour the concrete, set guy wire posts, before they even start to stack the first tower section, they seem to lose interest quickly!

a view of 1000s of feet of used radio towers on a 40 foot trail headed to the scrap yard, that k0uo has
View of General Steven Walz 1200 acre world largest antenna site and test range with super ham station, k0uo ham radio station k0uo,
miles of antennas for ham radio
dozens of tall antenna support structures, like FCC registered towers up to 195 foot, numerous 100 foot wood power-line poles, concrete silos, and portable mobile tower k0uo antenna test and rhombic farm is a big gun and contester dream station the biggest ham station with the highest gain biggest antennas in the world. The K0UO Rhombic farm and antenna test range is one of the very few big gun ham radio stations that has a tower which is tall enough and required by the FCC to have a registration. The Antenna Structure Registration or ASR tower number is 1216715. So the K0UO site, station, and antenna is in the FCC public file, for actual verification, unlike other so called big gun ham radio stations .
1200 acres to test and build all types of antennas and tower pole supports, also the largest ham radio station in the world with milrd of wire arrays and many towers, Antenna Test Facility ATF, electromagnetically-quiet area. View of General Steven Walz 1200 acre world largest antenna site and test range, k0uo ham radio station k0uo,
miles of antennas for ham radio
dozens of tall antenna support structures, like FCC registered towers up to 195 foot, numerous 100 foot wood powerline poles, concrete silos, and portable mobile towers.
The K0UO Rhombic farm and antenna test range is one of the very few ham radio stations that has a tower which is tall enough and required by the FCC to have a registration. The Antenna Structure Registration or ASR tower number is 1216715. So the K0UO site, station, and antenna is in the FCC public file. used in conjunction with RSI Corp of Kiowa KS seehttps://www.rsicorp.com/dtic. Use for DOD and commercial wireless telcom groups groups. K0UO uses Re-entrant system that achieves 90% efficiency, by re-phasing the power back into the antenna, rather than dissipating it as heat in termination resistors.Welcome to K0UO's premier ham radio antenna site farm, spanning hundreds of acres dedicated to innovative design and rigorous testing of antennas. The largest in the world, so join me in advancing the field of ham antennas radio with cutting-edge technology and expert guidance. This station has been very competitive, and has won many major worldwide amateur radio contest.
High-Frequency Stock Trading groups should use the rhombic antenna.

The Defense Technical Information Center is RSI's central facility for the collection and dissemination of scientific and technical training information. RSI supplies training and assessment services to the United States and other governments.Welcome to the K0UO Ham Radio Station, home the world's largest antenna site and test range, spanning impressive 1,200 acres. Featuring miles of antennas and towering structures—including FCC-registered reaching up to 195 feet—our facility is a dream destination for serious contester and big gun operators. With numerous -foot wooden powerline poles, concrete silos, and portable mobile towers, the K0UO Rhombic Farm stands out for its significant height and capabilities. Registered under Antenna Structure Registration number 1216715, our station is recognized in the FCC public file, credibility and verification that sets us apart from other so-called big gun ham stations. The station and antenna farm uses very complex highly engineered arrays.

k0uo uses Re-entrant Rhombic array is one of the highest forward gain HF antennas with its 90% efficiency, the highest forward gain of any HF ham antenna. Also a world-class multiple stations, with many large LPDA yagi type beam antennas, 195 to 300 foot towers, and multiple very large wood power-poles. Antennas from 160 meters up to 2 meters. Using the new Icom IC7760 as the main transceivers.

With 1200 acres near by to test and build all types of antennas and tower pole supports, also the largest ham radio station in the world with miles of wire arrays and many towers, — **An actual photo at the K**0UO site of just one of many loads of used Rohn towers, great for ham use!

**Gary, KB0HH built a great contest station out of used Rohn towers, mostly R35 from an old mobile phone MTS/IMTS tower of the 1960s, our team won many contest and so much fun**

photo of just some of Rohn used tower, 1000's of feet in storage at the K0UO Rhombic farm — **I have stacks of used Rohn towers**

**A project using recycled R-25 tower at the K0UO site**

a view of a K0UO antenna tower project, used at the antenna test range — **A 100 foot portable Rohn tower with galvanized angle iron reinforcement, that I use to easily climb my Rhombic Arrays which use 100 foot wood power line antenna poles**.

a view of a K0UO, Steve Walz project, A 100 foot portable Rohn tower with galvanized angle iron reinforcement, that I use to easily climb my 100 foot wood power line antenna poles. — **The** **100 foot portable Rohn tower with reinforcement use to easily climb my 100 foot wood power line antenna poles which support the Rhombic wire arrays**.

an actual photo view a a very large tower used at K0UO station and test range site a 195foot at "Antenna University" — **10 foot wide face tower made from Rohn 25 with a rotating tower in the center**

photo of a 100 foot pole used for antenna supports at K0UO over 40 100 foot poles in used at K0UO Rhombic farm — **Some of the 100 foot antenna poles in use at the K0UO Rhombic antenna farm**

view of a business sign of RSI Corp. - Radiofrequency Safety International and some of their groups in Kiowa, KS area, Jon Walz, KD0DCO of ConcreteWalz and with RSI Corp set a large number of SCADA towers for the oil & gas industry, the skid loader has a cement mixer and hole drilling auger attachment. Every thing needed to set up the Rohn towers — **One of our service install trucks**

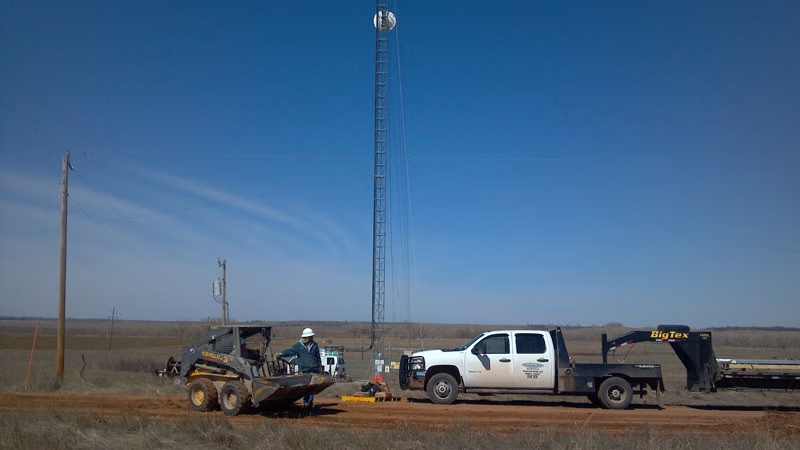

on a job site View of the K0UO RSI Corp. - Radiofrequency Safety International antenna 1200 acres antenna test range site at the worlds largest ham radio station with the largest highest gain DX, contest antennas — **One of our crews at a tower job site**

a photo "Rigid Tube" for export 26KD, J, C Models in use at the K0UO Rhombic antenna farm which is the highest forward gain array and largest area on 1200 acres in use by any amateur ham station DX, remote, or contest station in current use any where in the world — The above tower is Rohn Type J Rigid Tube Tower, Back in the 70's and 80's Rohn produced an Erector set version of their towers for export, that were knocked down, then assembled on site called "Rigid Tube towers", with 19 1/2" face. This Rohn type J is one used by K0UO Steve Walz, a 195 foot tower with FCC ASR number at the Rhombic Farm

RIGID TUBE TOWERS WAS THE IDEAL TOWER FOR EXPORT USE, which was only produced in the 1960-90s: Versatility, ease of assembly and an extremely efficient shipping design combine to make the ROHN Rigid Tube Tower an ideal structure for export use. The All Bolted construction means the towers can be packed in tight containers, conserving space and greatly reducing any chance for shipping damage. The three models in the Rigid Tube Tower Series are: the Type or Model 26KD Tower, the J Tower, and the C Tower.

view of the Rigid Tube Rohn tower, The All Bolted construction means the towers can be packed in tight containers, conserving space and greatly reducing any chance for shipping damage. The three models in the Rigid Tube Tower Series are: the 26KD Tower, the J Tower, and the C Tower. — **ROHN, RIGID TUBE TOWERS 26KA, J, C types were the export towers, which was only produced in the 1960-90s: The climb leg is only on one side, and uses three bolts on each leg, for connection.**

STREAMLINED DESIGN: The streamlined design eliminates the conventional flange plate connection, replacing it with an unusually high strength multiple bolt swaged steel joint. Legs can be bundled tightly with no dead space between the major members. This design reduced the cubic foot requirements for packing by as much as 80% over conventional structures, while insuring a strong connection between sections of the assembled tower. As with all ROHN products, Rigid Tube Towers were Hot Dip Galvanized after fabrication to assure years of corrosion free use. In this process, each section of the tower is totally immersed in molten zinc, bonding 2 ounces of the zinc to every square foot of steel. Hot Dip Galvanizing protects all surfaces, inside and out, against rust and corrosion while providing an attractive finish. These towers on have a climb leg on one side.

view from the 1990s Rohn catalog of the ROHN, RIGID TUBE TOWERS 26KA, J, C types were the export towers, showing section joint 3 bolt per leg, and a taper base, K0uo used a 195 foot type J — **ROHN, RIGID TUBE TOWERS 26KA, J, C types were the export towers**

26KD TOWER: The 26KD Tower is an 111⁄4” triangular tower with a 121⁄2” face. It is suitable for installation up to 150’ with proper guying. FEATURES: • Hot Dip Galvanized after fabrication • Ideal for export, efficient shipping • 10’ Section length • Side Rails are 11⁄4” X 16 ga. high strength steel tubing with minimum yield strength of 50 KSI • Steps are 1 • 7 Bays of bracing, 1⁄2” by 18 ga. with a minimum yield strength of 33 KSI ” X 18 ga. on one face. Like a R25 usable to 150 feet

J TOWER: The J Tower is an 18” triangular tower with a 191⁄2” face. It is suitable for installation up to 300’ with proper guying. FEATURES: •Hot Dip Galvanized after fabrication •Ideal for export, efficient shipping •10’ Section length with shorter top sections available •Side Rails are 11⁄2” X 14 ga. high strength steel tubing with minimum yield strength of 50 KSI •6 Bays of bracing, 3⁄4” by 16 ga. with a minimum yield strength of 32 KSI •Steps are 3⁄4” X 16 ga. on one face, this tower is easy to spot as it uses three bolts per leg. It is like a R55, I have a 195 foot at my Rhombic Farm which was part of an 300 foot Cable TV tower. Rohn J, is usable to 300 feet

C TOWER: The C Tower is a 24” triangular tower with a 261⁄ 4” face. It is suitable for installation up to 400’ with proper guying. FEATURES: • Hot Dip Galvanized after fabrication • Ideal for export, efficient shipping • 20’ Section length with shorter top sections available • Side Rails are 21⁄4” X 12 ga. high strength steel tubing with minimum yield strength of 50 KSI • 10 Bays of bracing, 1” by 16 ga. with a minimum yield strength of 32 KSI • Steps are 1” X 16 ga. on one face. Like a R65. Rohn C is usable to 400 feet

Rigid Tube Layout

View of the K0UO RSI Corp. - Radiofrequency Safety International owned by Steven Walz who also has the Rhombic antenna 1200 acres antenna test range site at the worlds largest ham radio station with the largest highest gain DX, contest antennas — Installing a Rohn 45 at the RSI Corp office in Kiowa, KS

**Rohn 55 on a trailer, one of K0UO's towers now in the Air**

RSI Corp. - Radiofrequency Safety International owned by Steven Walz istalled over 800 rohn R25 and 45G in 2009 to 2012 ,Steve Walz who also has the Rhombic antenna 1200 acres antenna test range site at the worlds largest ham radio station with the largest highest gain DX, contest antennas — R25G base using a 24" bore drill and 5000lb concrete

an actual photo of K0UO scap Rohn tower, 1000s of feet — Scrape load of Rohn tower at K0UO's site

view of a 100 foot tower at the View of the K0UO RSI Corp. - Radiofrequency Safety International antenna 1200 acres antenna test range site at the worlds largest ham radio station with the largest highest gain DX, contest antennas — **Rohn 55, with a hinge base build by the RSI Corp team in Kiowa, KS**

**A 100 foot R-55 in use along side of a large grain silo at the K0UO Rhombic Antenna farm and Antenna Test Range**

view looking up from the ground of one of k0uo's many 100 foot tower at the world largest ham radio station and site in SW Kansas. The Rhombic Farm — **A 100 foot R-55 in use at the K0UO Rhombic Antenna farm and Antenna Test Range Site in Kiowa, KS**

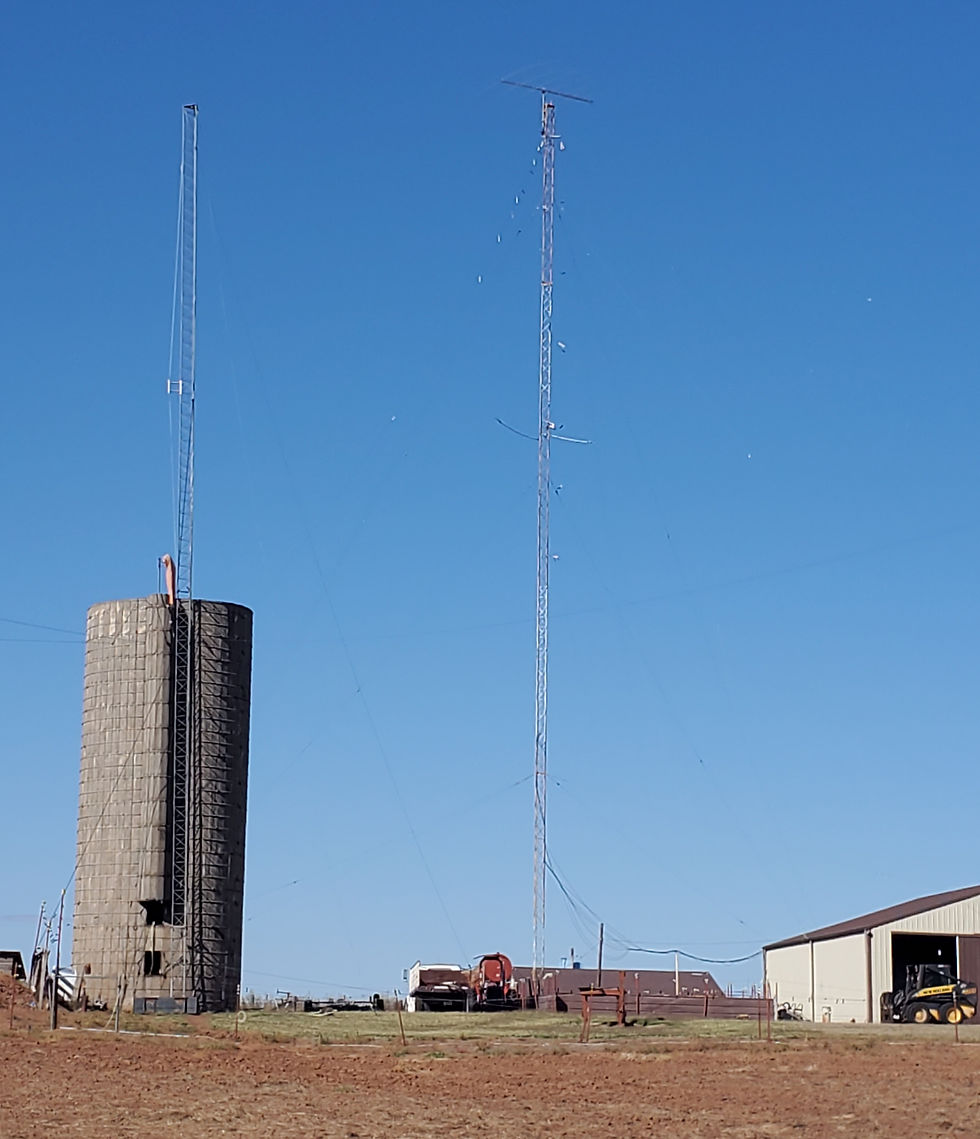

**A 100 foot tall R-55 and a 195' Rohn Type J, export type tower which has a 19 1/2"face and is heavier than a R-55**

The K0UO antenna test range site makes use of the 4KS Walz airport, known as "Antenna University", and its surrounding area as a practical learning environment for STEM (Scientific, Technical, Engineering, & Mathematics) antenna projects in a real-world outdoor setting. The site has a large outdoor area with a variety of terrain types for conducting user defined experiments. If your group has a University aerospace or antenna research STEM program, please let me know.

The KØUO Rhombic Antenna Farm and Antenna Test Range: Home to the World's Largest amateur radio (ham), High Frequency (HF) Wire Arrays, miles of wire in the air and on the air daily.
